small crawler type hydraulic excavator Manufacturer&Supplier

model	BSE13P
bucket volume	0.025 m3
chassis width	1100 mm
track ground length	1300 mm
gradeability	40¡ã
chassis ground clearance	385 mm
track width	180 mm
fuel tank capacity	3.5 l
dimensions ( LWH )	2200 * 1000 * 2200 mm
length	2400 mm
excavator height	2200 mm
hydraulic flow	40 l / min
hydraulic tank volume	16 l
work pressure	16 mpa
maximum digging height	2550 mm
maximum dumping height	1710 mm
maximum digging depth	1740 mm
maximum digging radius	3100 mm
radius of rotation	1635 mm
bucket digging power	11 kn
vehicle weight	1000 kg
engine	BS192F / Briggs & Stratton
power	10.3KW / 14HP

The BSE13P small hydraulic excavator, equipped with a crawler system, boasts superb stability and grip across a range of surfaces including mud, gravel, and sand.

With an overall width of only 1100mm, its compact size allows it to easily pass through narrow passages and doors.

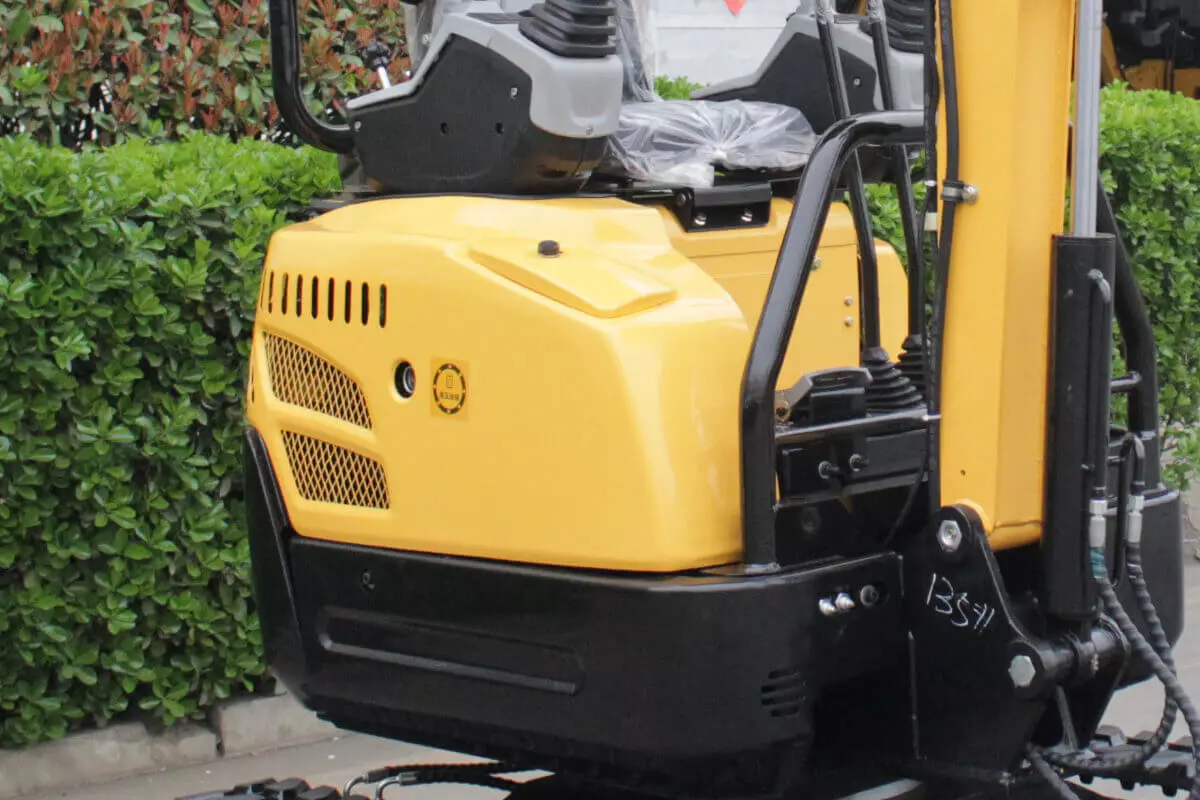

Made of high-quality materials, the unique large counterweight design is made of three pieces of solid cast iron and is located at the rear of the machine to protect all important parts. Fully surrounded by steel plates, providing further protection.

The operating environment of the small crawler type hydraulic excavator machine is spacious and tidy, with a simple control panel and large walking pedals.

Sound insulation cotton is standard to reduce noise. Due to the articulated fuel tank, the engine compartment is very convenient to reach, and daily inspection points are easy to find, allowing maintenance tasks to be completed quickly.

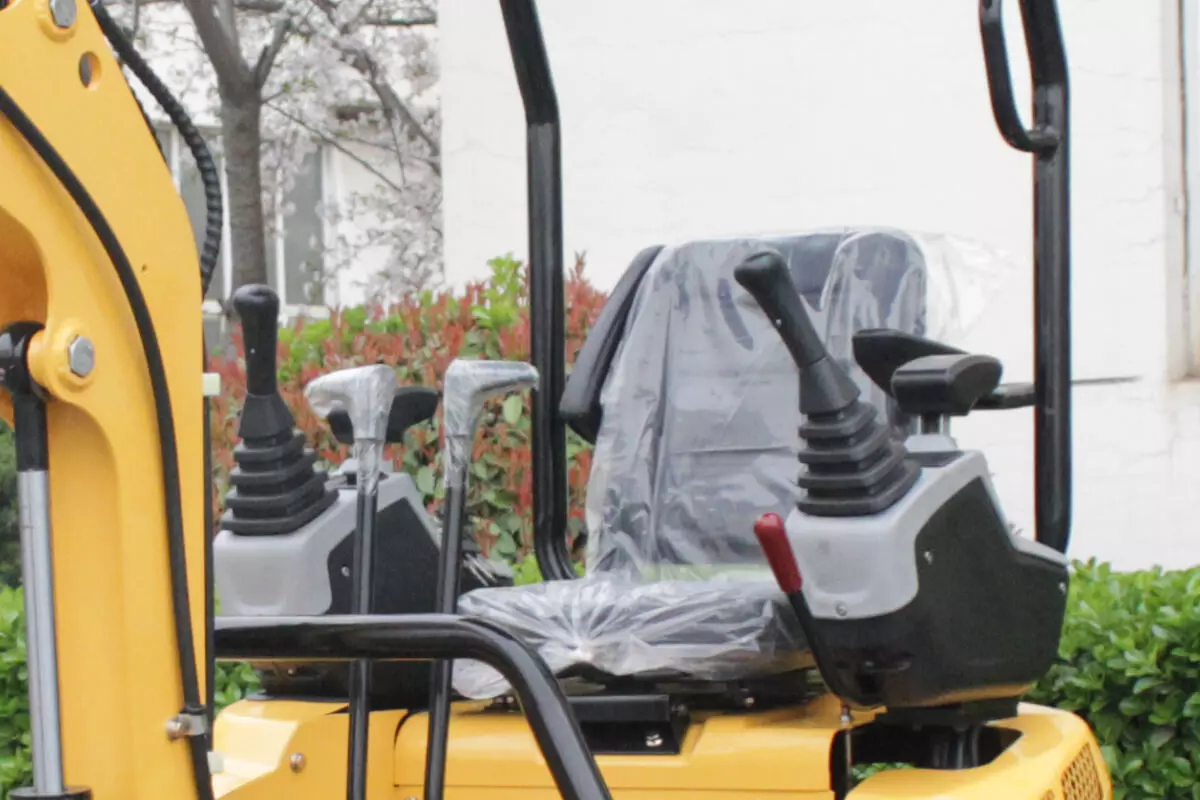

Prioritizing operator comfort and safety, the seat design reduces fatigue and improves productivity during long working hours.

BISON small excavator manufacturer can provide you with exclusive customization services and will produce the crawler type hydraulic excavator you want according to your requirements, including but not limited to brand customization, color customization and engine customization.

How do crawler excavators move?

Crawler excavators function on two rotating tracks, like to a tank. Although their movement is slow, the crawler chassis equips them to handle steep, uneven, and rough terrain effectively. Therefore, they are widely used in mining, construction, landscaping, and foundation engineering.

What purposes do hydraulic excavators serve?

Their hydraulic systems allow them to undertake many different tasks. These machines are not limited to earthmoving. They are also capable of lifting and positioning heavy items, including sewer pipes, equipment, and building panels, among others.

Our excavator has been selling well both at home and abroad for many years. BISON is one of the most influential excavator manufacturers in China.

factory 2

factory 1

The main reasons you should choose BISON over other competitors

BISON has passed TUV SGS, CE, EMC certification and ISO9001 management system certification. Super professional service, from pre-sale, sale to after-sales service. BISON is not only your work partner, but also your friend and family. Provide videos of how to use excavator and any other relevant content. All BISON excavator are double 100% tested, strict control of the entire production process. BISON have established long-term business relationships with customers from more than 70 countries and regions around the world.

In case you encounter any problems with imported excavator, please contact our customer service team at [email protected] and we will help you out.
